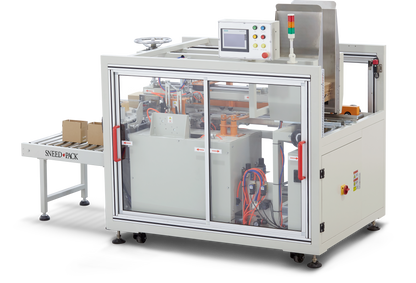

SNEED-PACK® CE-30HS High Speed Small Box Case Erector
SNEED-PACK® Case Erector And Box Erector For Small Boxes; High Speed
Description
Are you tired of seeing ads for case erectors only to click and realize that your boxes are too small? With our SNEED-PACK® CE-30HS, you can rest assured that we have a box/case/carton erector that was specifically designed for those small cartons on which the e-commerce industry relies so heavily. Gone are the days when endlessly forming small boxes manually was the only option, not to mention the headache of dealing with wasted boxes and material from boxes being formed or sealed incorrectly. Regardless of the reason for seeking out a small-box, high-speed box/case/carton erector, our SNEED-PACK® CE-30HS can help you #KeepPackagingSimple.
Rather than manually forming only 3-5 cartons per minute, our SNEED-PACK® CE-30HS case erector easily produces 20 cartons per minute; with our small-box, high-speed case erector, you’re projected to quadruple productivity, all while increasing efficiency and accuracy. Adding this small-box, high-speed case erector helps to increase accuracy by reducing the number of imperfectly formed boxes and boxes that have an excess amount of adhesive or lack of adhesive in the right places. Streamlining production has never been simpler, thanks to the suction cups, forming, bottom folding, and bottom sealing features of the SNEED-PACK® CE-30HS.
Product Video
Benefits
- Reduce labor costs with carton erector by eliminating the need for manual taping
- Reduce risk for employee injuries and downtime caused by repetitive motion
- Reduce material waste with a box-erecting machine
- Improve packing and case erecting efficiency
- Up to 2-3x faster than manual box erecting
- Reduce damage during transit and shipping
- Eliminate uneven tape lengths and positions
Product Specifications
- Speed: 20 cases/minute
- Box Storage Capacity: 80 to 100 Cases (Will vary based on case thickness)
- Minimum Box Size:
- 5.11in Length
- 3.15in Width
- 3.15in Height
-
Maximum Box Size:
- 11.02in Length
- 7.87in Width
- 7.87in Height
- Tape Head Width: 2in
- Power Supply: 110V 50/60HZ 1 Phase
- Power: 1000W
- Air Pressure: 6-8kg/cm2
- Air Consumption: 450NL / min
- Dimensions:
- Length: 66.14in
- Width: 47.64in
- Height: 68.89in
- Machine weight: 1,540lbs
Tape Options
- Machine Length Tape
- FREE Tape Head Offer for Pallet Orders:
We are happy to offer a FREE tape head with every pallet of tape ordered. This offer applies to all tape varieties, including acrylic and hot melt, as well as two-inch or three-inch widths.
Crating & Freight
Crating is included in the listed price. We offer flat rate freight anywhere in the continental United States for $995 - there may be additional charges for destinations outside the continental United States.
Lead time
Our SNEED-PACK Case Erectors are built to order - the current lead time is 3-4 months.
Compatible Case Coding Printers
- Click Here for the Complete Case Coding Catalogue
- SNEED-JET® Freedom Series
- Utilizes maintenance-free, thermal inkjet technology
- Multiple models available for:
- One-inch printing on one side of the case or carton: SNEED-JET® Freedom
- One-inch printing on both sides of the case or carton: SNEED-JET® Freedom 22
- Two-inch printing on one side of the case or carton: SNEED-JET® Freedom 21
-
SNEED-JET® Infinity Inkjet Printer
- Utilizes maintenance-free, thermal inkjet technology
- Half-inch print head
- WiFi capable of programming with a PC or smart device
- Network and control multiple printers from one location
- SNEED-JET® Titan Series
- Utilizes maintenance-free, thermal inkjet technology
- Half-inch print head
- Multiple models available
Related SNEED-PACK® Equipment
Warranty Information
- 12-Month Manufacturer's Warranty
