SNEED-PACK Tincture Bottle Filling Production Line
Automate Your Tincture Bottle Filling Process
Are you tired of dealing with inconsistent fills, improperly sealed bottles, or labeling mishaps during the manual tincture bottling process? It's time to embrace automation. Introducing the SNEED-PACK Tincture Bottle Filling Production Line – your key to precision and efficiency.

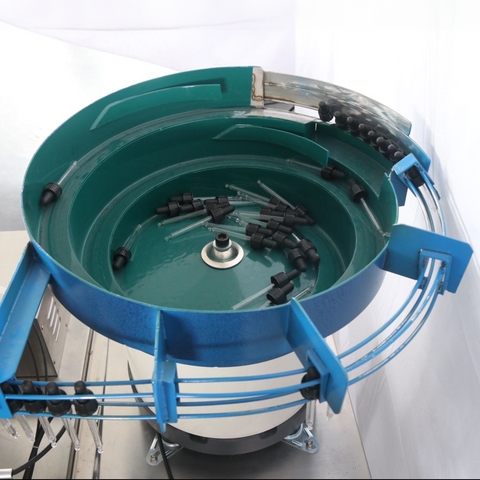

Our automated system handles everything from bottle arrangement to liquid filling, bottle plug and cap placement, capping, and product sorting. Depending on your bottle size, it can process an impressive 20-40 bottles per minute. Plus, it's fully customizable to accommodate containers of various sizes.
Say goodbye to bottling headaches and hello to a seamless, error-free production line. Boost your productivity and quality with SNEED-PACK's automated solutions.

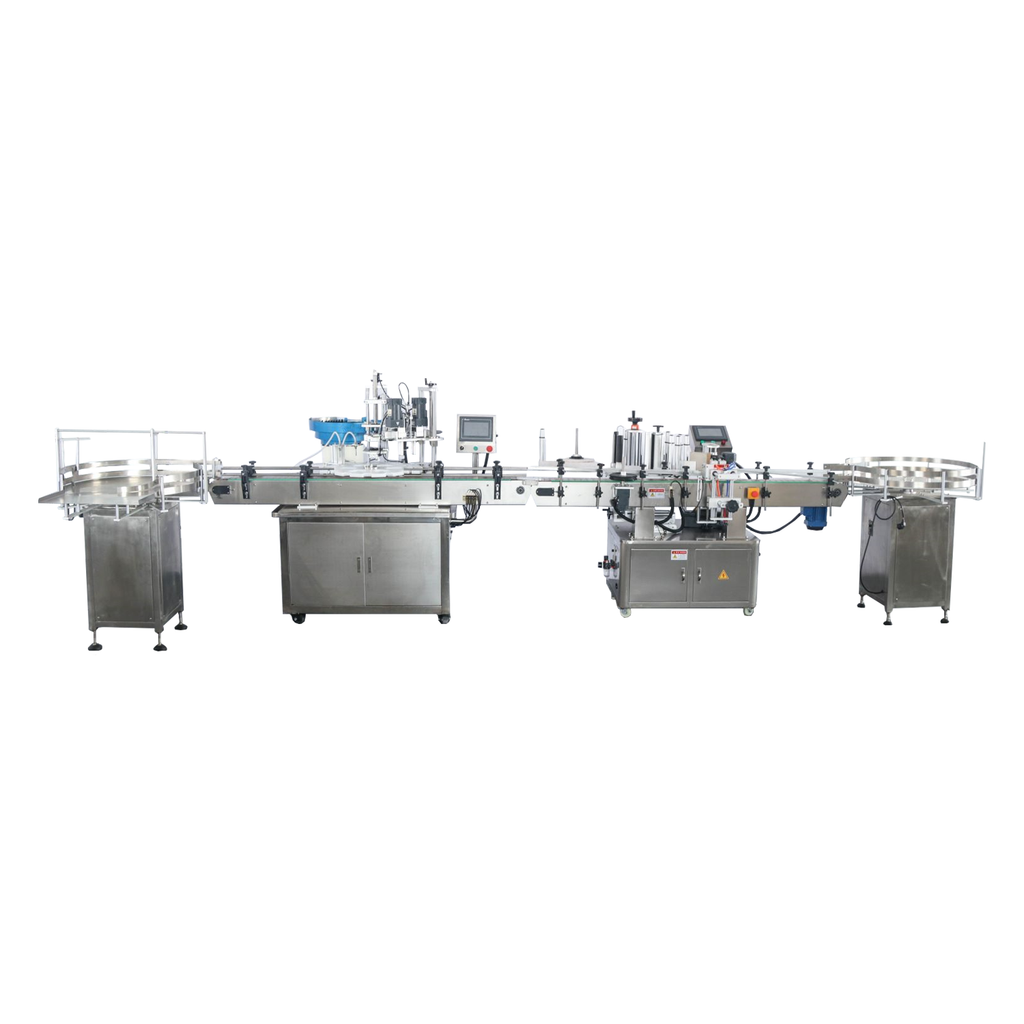

Our Tincture Bottle Filling Production Line comprises four essential components designed to streamline your bottling process:
- Turntable: Revolutionizing Loading Efficiency
- Filling and Capping Machine: Dual-Purpose Efficiency
- Automatic Labeling Machine: Flawless Label Application
- Bottle Sorting Machine: Streamlined Packaging
Say goodbye to bottling one by one. Our turntable allows you to load up to 40-60 bottles at once. It efficiently feeds bottles into the production line, saving you time and effort.

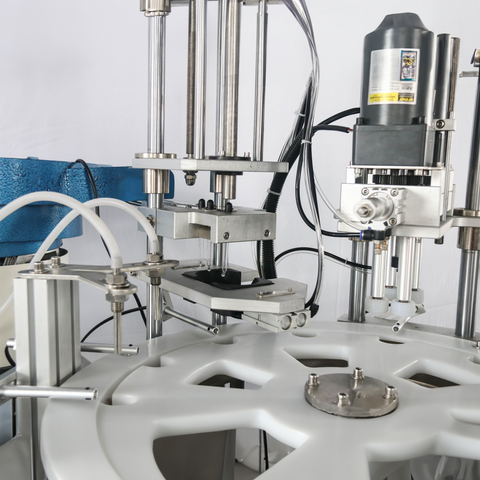

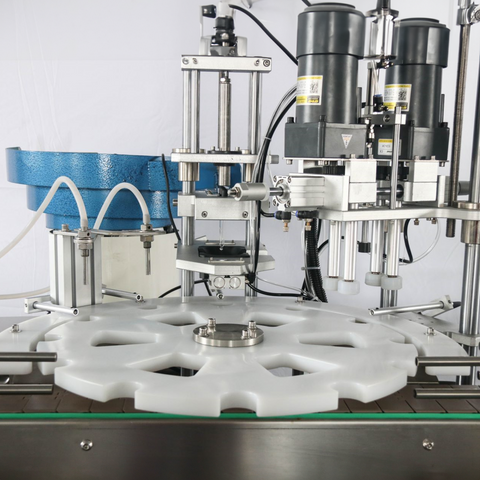

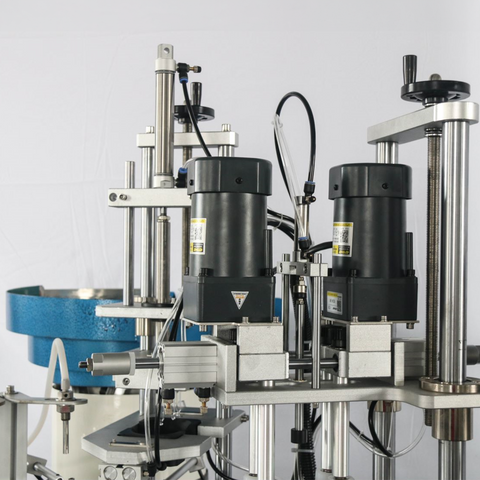

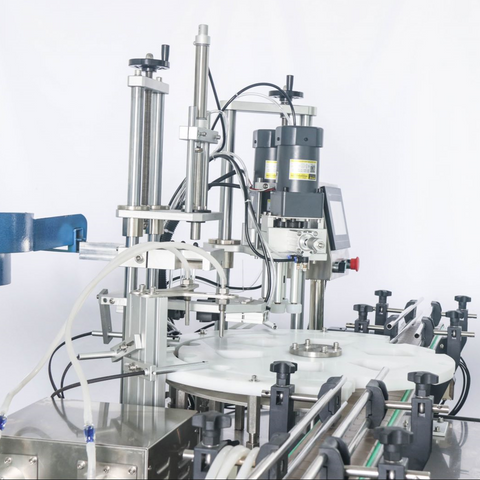

Our specialized tincture bottle-filling production line features a versatile two-in-one filling and capping machine. With the capacity to process up to 40 bottles per minute (size-dependent), it ensures swift and precise bottling.
Forget the hassle of manual labeling. Our automatic labeling machine effortlessly peels, aligns, and applies labels with consistency. No more worries about crooked or misplaced labels. This machine can apply between 25-50 labels per minute, depending on the bottle size.
Simplify the post-production process with our bottle sorting machine. Instead of manually collecting each bottle, it efficiently gathers and holds them until you're ready for packaging.
Experience efficiency, accuracy, and consistency with our tincture bottle-filling production line components. Upgrade your bottling process today.
SNEED-PACK Production Line Components
Rotary Unscrambler
- Turntable Diameter: 80cm or 100cm
- Suitable Bottle Diameter: 20-100mm
- Suitable Bottle Height: 30-320mm
- Working Speed: 40-60 bottles/min(depends on bottle size)
- Motor Power: 50W
- Power Supply: 220/110v 50/60hz
- Net Weight: 50-65kg or 135kg/180kg

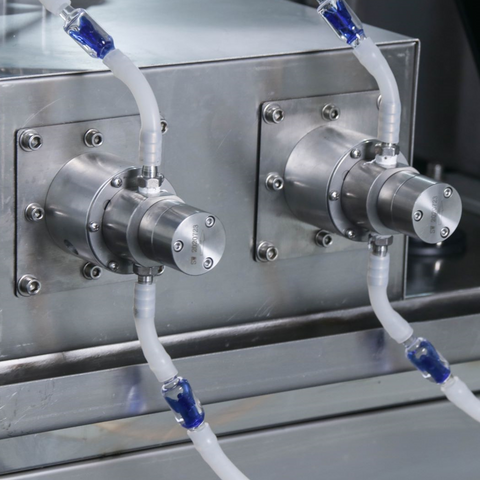

2-Head Liquid Filler & Capper
- Power Supply: AC110V/220V 50hz/60hz
- Bottle Diameter: 25-50mm
- Bottle Height: 50-350mm
- Working Speed: Up to 40 bottles/min. (depending on liquid, bottle and caps)
- Max Power: 300W

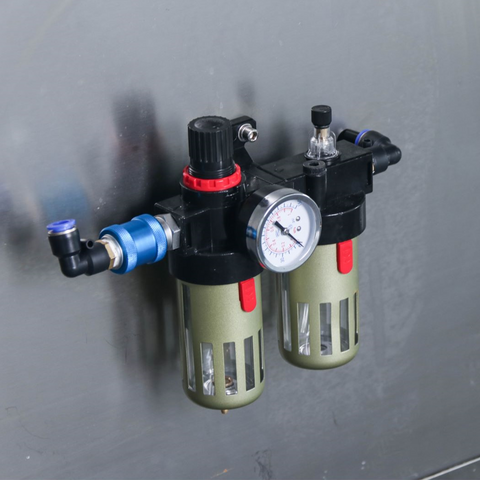

- Air Pressure; 0.4-0.6MPa
- Capping Torsion: 409kgf/cm

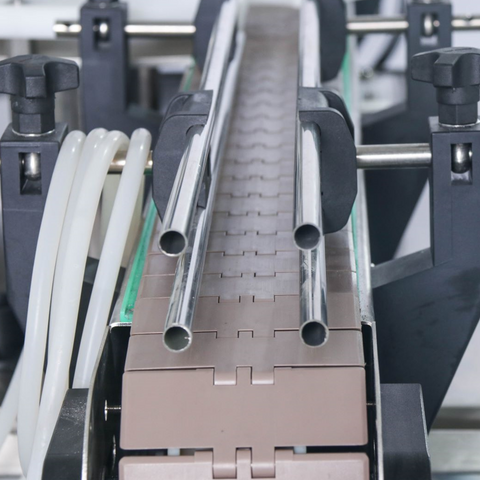

- Conveyor Size: 78.74in x 3.94in (L x W)
- Machine Size: 39.96in x 31.5 x 61.42 (L x W x H)
- Machine Weight: 751.78lbs
Labeler
- Power Supply: AC220V 50/60Hz 1500W
- Labeling Capacity: 25-50pcs/min (depends on bottle size)
- Labeling Accuracy: ± 1.0mm
- Suitable Bottle Diameter: 30-100mm
- Label Size: 15-200mm x 15-150mm (L x H)
- Roll Inside Diameter: 76mm
- Roll Outside Diameter: 350mm
- Conveyor Size: 76.77in x 3.94in (L x W)
Accumulating Table
- Speed: Up to 20 RPM (adjustable)
- Voltage: 200/110V 50Hz
- Power Supply: 50W
- Turntable Diameter: 31.5in
Crating & Freight
Crating is included in the listed price. We offer flat rate freight anywhere in the continental United States for $4995 - there may be additional charges for destinations outside the continental United States.
Lead Time
SNEED-PACK Liquid Filling Production Line is built to order. 3-4 month lead time.
Compatible Printers
Compatible End of Line Packaging Equipment
Warranty Information
- 12 Month Manufacturer's Warranty
User Manual & Help Desk
COMING SOON!
