Description

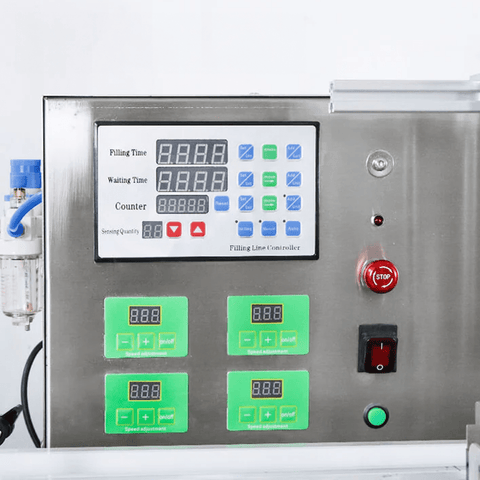

Upgrade your filling process with the efficient SNEED-PACK Liquid Filling Production Line. Bid Farewell to manual tasks as you automate the process of filling, capping, and labeling bottles. Benefit from impressive productivity rates: unscramble 40-60 bottles per minute, fill 30-50 bottles per minute, cap 20-40 bottles per minute, and label 20-60 bottles per minute (varying with bottle and label sizes). This comprehensive line includes a bottle unscrambler, a four-head liquid filler, a capper, a labeler, and an accumulation table at the end of the line, guaranteeing precise and efficient operations. Enjoy the flexibility of customizing dimensions, speeds, filling times, and more using the intuitive user-friendly controls.

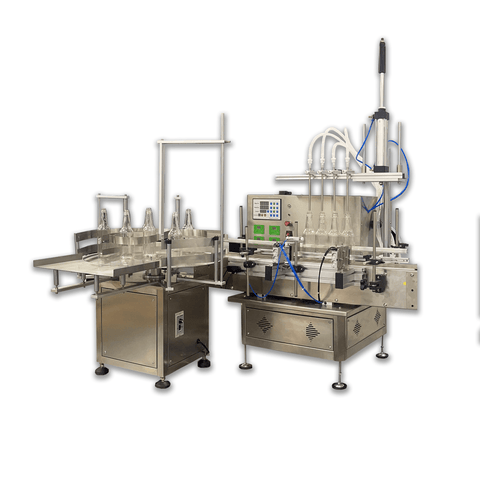

SNEED-PACK Production Line Components
Rotary Unscrambler
- Turntable Diameter: 600mm
- Suitable Bottle Diameter: 30-80mm
- suitable Bottle Height: Max 2500mm
- Working Speed: 40-60 bottles/min(depends on bottle size)
- Motor Power: 40W
- Power Supply: 220V 50/60hz
- Net Weight: 27.5kg

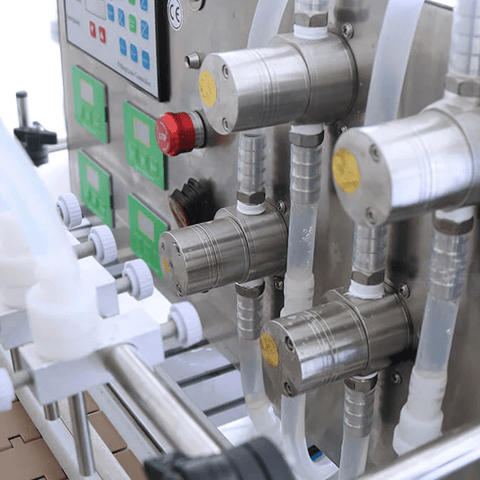

4-Head Liquid Filler, Peristaltic Pump
- Power Supply: AC110V/220V 50hz/60hz 60W(Each Pump)
- Filling Range: 2500ml/min
- Maximum Flow: 2500m/min for each nozzle (based on water)

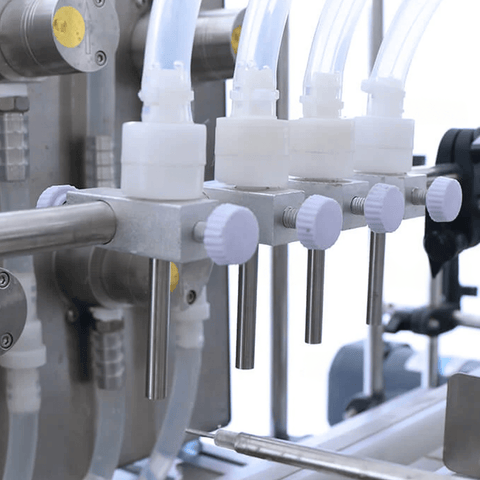

- Filling Nozzles: 4 (we can customize the nozzles based on your demands)
- Working Speed: 30-50 bottles/min (based on bottles and liquids)
- Air Pressure: 0.3-0.4MPa
- Filling Accuracy: ≤±1% (For water)
- Diameter of Filling Nozzle: 6/8mm
- Delay Range: 0.01-999.9s

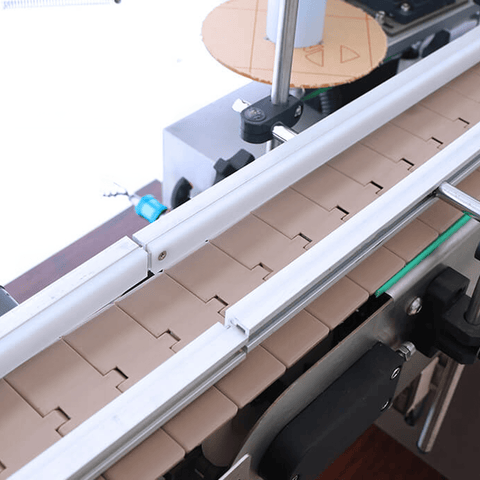

- Belt Length: 1m
- Size of Air Compressor Connector: OD8mm
- Package Size: 1150*770*840mm
- Package Weight: 110kg

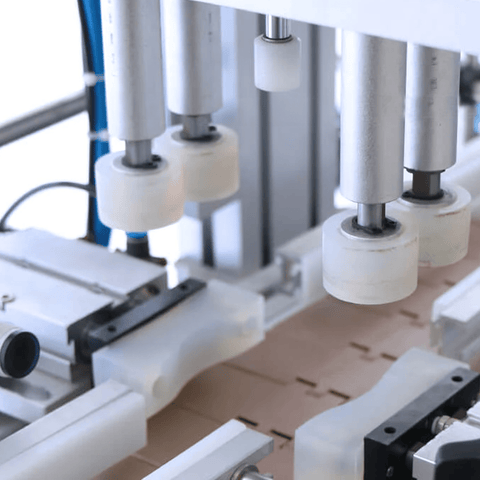

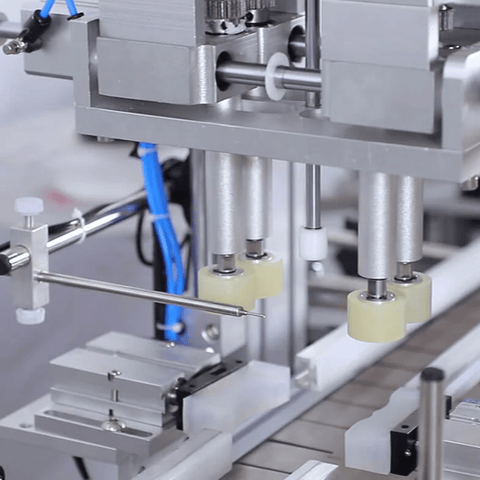

Capper
- Bottle Height: 60-270mm
- Bottle Caps Diameter: 18-70mm
- Working Speed: 20-40 bottles/minute (depending on bottle and caps)
- Working Voltage: AC220V/110V 50/60hz
- Working Pressure: 0.4-0.6 MPa
- Machine Size: 1120*580*1110mm
- Package Size: 1160*610*1140mm
- Package Weight: About 97.5kg
- Conveyor Length: 1117mm
- Size of Air Compressor Connector: OD8mm

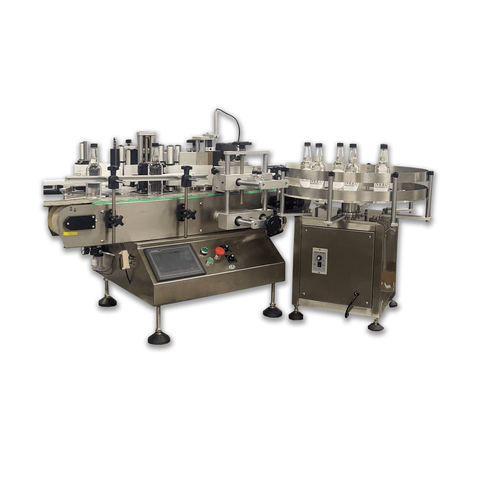

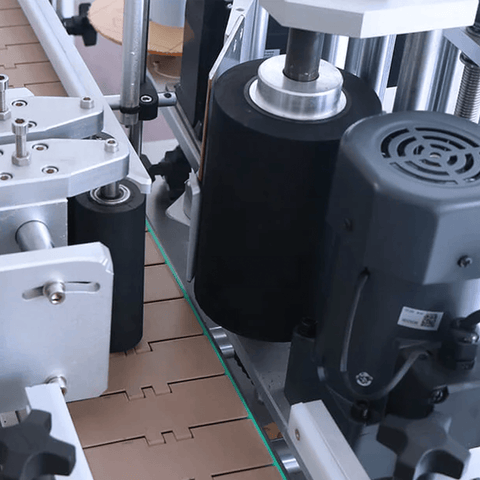

Labeler
- Voltage: 110V 60hz
- Working Speed: 20-50 bottles/min
- Suitable Labeling Size: 15-140mm (W) x 25-300mm (L)
- Roll Inside Diameter: 76mm
- Roll Outside Diameter: 350mm
- Suitable Bottle Diameter: Max 100mm
- Package Size: 1290*860*900mm
- Package Weight: 130kg
Accumulating Table
- Turntable Diameter: 600mm
- Suitable Bottle Diameter: 30-80mm
- Suitable Bottle Height: Max 2500mm
- Working Speed: 40-60 bottles/min (depends on bottle size)
- Motor Power: 40W
- Power Supply: 220V 50/60hz
Crating & Freight
Crating is included in the listed price. We offer flat rate freight anywhere in the continental United States for $1995 - there may be additional charges for destinations outside the continental United States.
Lead Time
SNEED-PACK Liquid Filling Production Line is built to order. 3-4 month lead time.
Compatible Printers
Compatible End of Line Packaging Equipment
Warranty Information
- 12 Month Manufacturer's Warranty
User Manual & Help Desk
COMING SOON!
